PROGRAM: DataPlus for GT - Server Installation

Table of Contents
What you need prior to installation?
64 Bit Operating Systems
  1. Create MS SQL Server or MS SQL Express 64 bit instance
    1. Act! instance of SQL may be used with caution.
    2. Specify SQL Server administrators
    3. If in Domain environment we recommend adding Domain Administrators
    4. Authentication Mode
    5. Mixed Mode
    6. Make SA enabled
    7. Create sa password and keep for your records
  2. Compatible MS SQL Versions
    1. SQL 2016
    2. SQL 2014
    3. SQL 2012
    4. SQL 2008
  3. SQL Server Management Studio (SSMS)
  4. SQL Security - User Logins
    1. Windows Login Options (use either type)
      1. Type: Windows User
      2. Type: Windows Group
GT
  1. Version: GT Application
Act! Premium
  1. Version: Act Premium v24 or higher
  2. Act Premium installed
What you need for installation?
  • DataPlus for GT installer (DataPlus-GT-Install.exe)
  • Act! database for GT
    • Hogan Data provides a Act! database with the purchase of DataPlus for GT Application
    • Or you can use your existing database
    • There will be new fields created & will have to be added to layout
    • Review Act! Database Configuration
  • Act! Administrator username and password
  • Window's Administrator or Window's Domain Administrator username and password
Network Environment
Scenario 1
  1. Sage installed a Server 1
    1. Install DataMirror for PT
    2. DataPlus Sage 50 US Bridge
  2. Act installed a Server 2
    1. Install DataPlus SQL Instance (Act instance can be used with caution).
    2. Install SQL Management Studio
    3. Install DataPlus for Sage 50 US (Server/Client)
    4. Do not install DataMirror for PT
Scenario 2
  1. Sage installed a Server 1
  2. Act installed a Server 1
    1. Install DataPlus SQL Instance (Act instance can be used with caution).
    2. Install SQL Management Studio
    3. Install DataPlus for Sage 50 US (Server/Client)
Scenario 3
  1. Sage installed a Server 1
    1. Install DataPlus SQL Instance
    2. Install DataMirror for PT
    3. DataPlus Sage 50 US Bridge
  2. Act installed a Client 1
    1. Install SQL Management Studio
    2. Install DataPlus for Sage 50 US (Server/Client)
    3. Do not install DataMirror for PT
Scenario 4
  1. Sage installed a Server 1
  2. Act installed a Server 1
    1. Install DataPlus SQL Instance (Act instance can be used with caution).
    2. Install SQL Management Studio
    3. Install DataPlus for Sage 50 US (Server/Client)
Server Installation
DataPlus Setup
    Welcome Screen
  1. Right click DataPlus-GT-Install.exe and "Run as administrator
  2. This will start the DataPlus 4.0 setup wizard.
  3. Click on Next >
DataPlus Setup
    License Agreement
  1. License Agreement
  2. If you agree, check "I accept the terms in the license agreement"
  3. Click on Next >
DataPlus Setup
    Server Components
  1. If you are going to install just the server component, check "Server Components"
  2. Click on Next >

DataPlus Setup

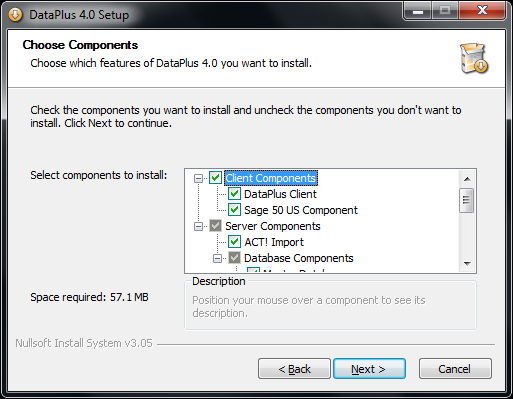

    Server/Client Components
  1. If you are going to install server and client component, check "Server Components" and "Client Components"
  2. Click on Next >

DataPlus Setup
    Choose Install Location
  1. Click on Install
DataPlus Setup
    Installing
DataPlus Setup

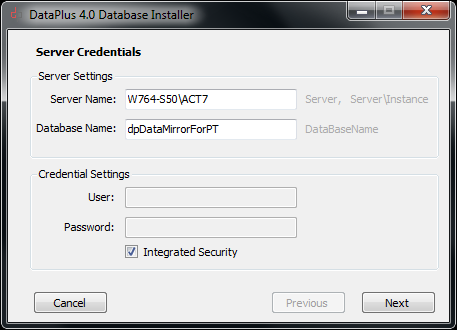

    Server Credentials
    Server Settings
  1. SQL Server Name: Server\SQLInstanceName
  2. Database Name: dpDataMirrorForPT
  3. Credential Settings Windows Authentication
  4. User: sa or other user you setup
  5. Password: password
  6. Integrated Security
  7. CHECK for Integrated Security
  8. Click on Next >
DataPlus Database Setup

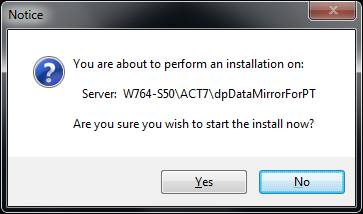

    Perform Installation
  1. Click on Yes
DataPlus Database Setup
    Create Database
  1. Click on Yes
DataPlus Database Setup
    Finished
  1. Installation Complete
  2. Click on Finish
DataPlus Setup
    Server Credentials
    Server Settings
  1. SQL Server Name: Server\SQLInstanceName
  2. Database Name: dpDataMirrorForPT
  3. Note: This is the database name you originally created. Installer will add additional components. Choose Integrated Security or uncheck for SQL credentials
    Credential Settings
    Windows Authentication
  4. User: sa or other user you setup
  5. Password: password
  6. Integrated Security
  7. CHECK for Integrated Security
  8. Click on Next >
DataPlus Database Setup
  1. Click Finish
DataPlus Setup
  1. Installation Complete
  2. Click Next >
DataPlus Setup
    Run Server Configuration
  1. CHECK to run Server Configuration
  2. Click on Finish

If you chose Server & Client components, then dialog box below will appear.

Client Configuration Manager
  1. Click on Close
Server Configuration Manager
    Master Connection Settings
    Database Configuration
  1. DataPlus Server: ServerName
  2. DataPlus Database: DataBaseName
  3. Windows Authentication
  4. SQL User: sa
  5. SQL Password: password
  6. Integrated Security
  7. CHECK for Integrated Security
  8. Testing Connection
  9. Test Connection
  10. Click on OK
  11. Application Settings
  12. Report Path: unc Path to CR Reports
  13. Logging Options:
  14. unCHECK Log Warnings
  15. unCHECK Log Notices
  16. unCHECK Log Debugs
  17. Click on Save
  18. Click on Configure Applications >>
Server Configuration Manager
    Application Profiles
  1. Click on S50
  2. Application Settings
    Act Credentials
  3. Database; ActDatabaseName click on [..] to browse to database
  4. User Name: ActUserName must be an Act administrator
  5. Password: ActPassword
  6. Confirm: ActPassword
  7. Test Connection
  8. Click on OK
  9. Database Configuration
  10. Database: dpS50 DataPlus database name
  11. Server: ServerName\Instance SQL Instance if applicable
  12. SQL User: sa
  13. SQL Password: password
  14. Check if you want integrated security
  15. Test Connection
  16. Click on OK
  17. Click on Update
  18. Click on OK
  19. Click on PTA Perform the same task as S50
  20. Click on MNT Perform the same task as S50
  21. Click on Close

DataPlus Act Default Import Configuration
Auto Import Configuration
  1. Open DataPlus 4.0 Server Configuration
  2. Windows Start / Hogan Data / DataPlus 4.0 / DataPlus 4.0 Server Configuration
Auto Import Configuration
    Server Configuration
  1. Click on Configure Applications >>
Auto Import Configuration
    Server Configuration
    ACT Import Settings
  1. Import Options
  2. Click on [...] to browse to options
Auto Import Configuration

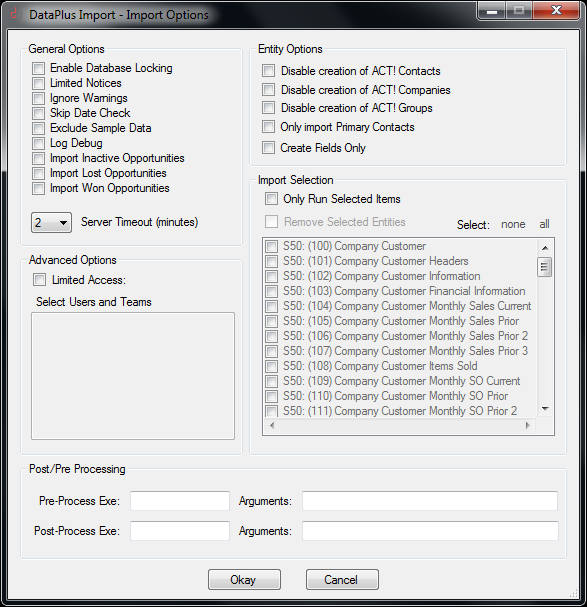

    Import Options
    General Options
  1. UnCheck Enable Database Locking
  2. UnCheck Limited Notices
  3. UnCheck Ignore Warnings
  4. UnCheck Skip Date Check
  5. UnCheck Exclude Sample Data
  6. UnCheck Log Debug
  7. UnCheck Import Inactive Opportunities
  8. UnCheck Import Lost Opportunities
  9. UnCheck Import Won Opportunities
  10. Note: If importing opportunities is enabled, leaving option UnChecked for "Import Opportunities" will disable any changes to be made with "Closed" opportunities.
  11. Set Server Timeout (minutes) (default = 2) (you can increase this as needed) Entity Options
  12. UnCheck Disable creation of Act! Contacts
  13. UnCheck Disable creation of Act! Companies
  14. Note: Check "Disable creation of Act! Companies" if you do not want to import Companies in the "Company Level" in Act
  15. UnCheck Disable creation of Act! Groups
  16. UnCheck Only Import Primary Contacts
  17. Note: Check "Only Import Primary Contacts" if you only want to import primary contacts
  18. UnCheck Create Fields Only
  19. Import Selection
  20. UnCheck Only Run Selected Items
  21. UnCheck Remove Selected Items (greyed out, unless Selected Items are checked)
  22. Advanced Options
  23. UnCheck If you are not using Limited Access in Act
  24. Check If you are using Limited Access in Act
  25. Select Users and Teams
    If you are using Act! Limited Access, you can choose:
    • Specific Act! Team(s)
    • Specific Act! User(s)
    Post/Pre Processing
  26. Pre-Process Exe: Leave blank
  27. Arguments: Leave blank
  28. Post-Process Exe: Leave blank
  29. Arguments: Leave blank

    IMPORTANT:
  • If you are not using the Act! database provided by Hogan Data, for Sage 100, when the first import is performed, additional fields may be required. Therefore, uncheck "Disable Database Locking" in order for the additional fields to be created.
  • By default, if the "Sales Representative" in Sage 100 equals the Act User Name in Act, the Sales Represetative name will populate the "Sales Representative" field in Act, and will also be the Act "Record Manager". The names have to be an exact match.
Auto Import Configuration
    Import Selection
  1. UnCheck Only Run Selected Items
  2. Click Okay if you want to import all entities
Note: Leaving "Only Run Selected Items" UnCheck will allow all entities to import into Act. However, there are some additional specific parameters for some entities to import. ie Act Opportunities.
  1. Check Only Run Selected Items
Note: Checking "Only Run Selected Items" will allow chosen entities to import into Act. However, there are some additional specific parameters for some entities to import. ie Act Opportunities.
Auto Import Configuration
    Import Selection
  1. Check each entity you want to import into Act
  2. Click all to choose all entities, then unCheck entities you do not want to import.
  3. Click Okay when completed.
DataPlus Act Manual Import - Preferred Entities
Server Configuration Manager
    Manual Import All
  1. ReRun DataPlus Manual Import
  2. Use your default configuration
Server Configuration Manager
    Manual Import All
  1. Click on Close
  2. DataPlus Import
  3. Click on Close
  4. or ...
  5. Click on Close & Review

DataPlus Act User Configuration
DataPlus Menu
  1. Open Act!
  2. No Menu Found
  3. DataPlus 4.0 Warning
  4. Click OK
DataPlus menus have not been configured. When DataPlus is configured in the following steps, this message will be disabled.
DataPlus Menu
    Manage Permissions
  1. Act Menu
  2. Tools/DataPlus 4.0/Manage Permission
DataPlus Menu
    Manage Permissions
    Current Connections
  1. Click Sage 50 US

  2. Permissions

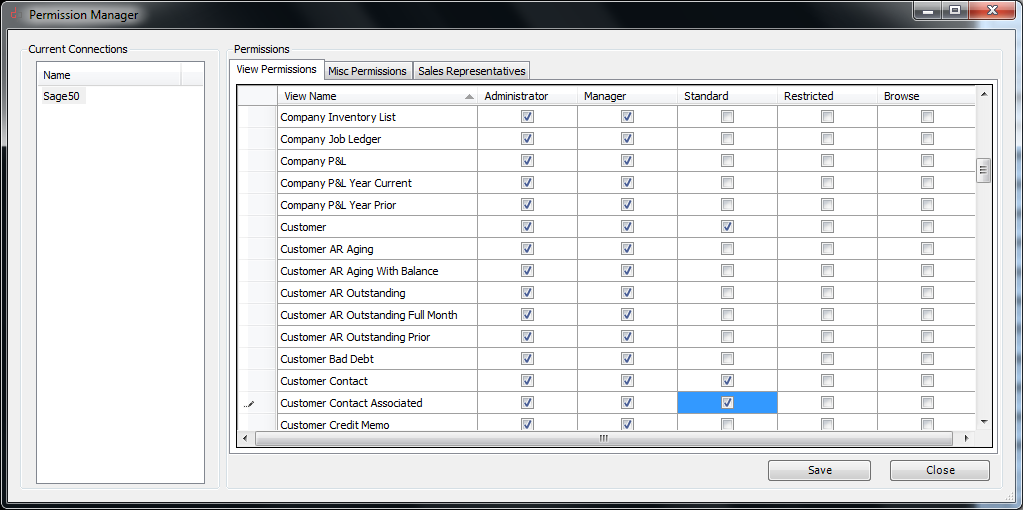

  3. Click View Permissions Tab
  4. Check box for each "View Name" that will be accessed by "Act User"
  5. You can double click the header to check or uncheck all
DataPlus Menu
    Manage Permissions
    Permissions

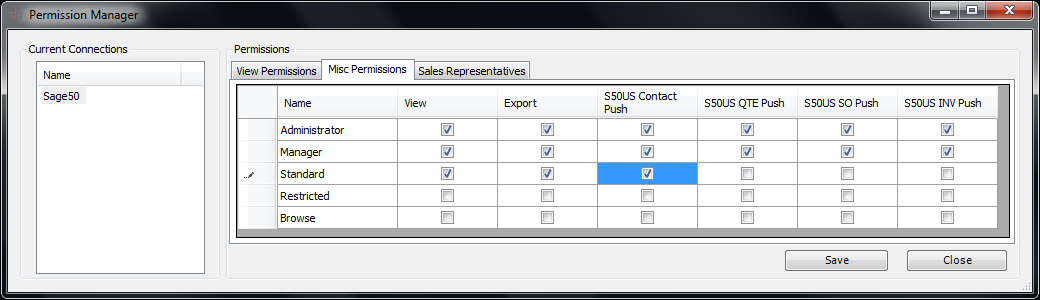

  1. Click Misc Permissions Tab
  2. Check View - enable views in Act DataPlus tab (overrides View Permissions)
  3. Check Export - export view to excel
  4. Check S50 Contact Push - Create Customer/Vendor/Employee
  5. - Edit Customer/Vendor
  6. Check S50 CONT Push - enables creating Contracts
  7. Check S50 EST Push - enables creating Estimates
  8. Check S50 INV Push - enables creating Invoices
  9. Check S50 SO Push - enables creating Sales Orders
  10. You can double click header or row to check or uncheck all
DataPlus Menu
    Sales Representative
    Permissions

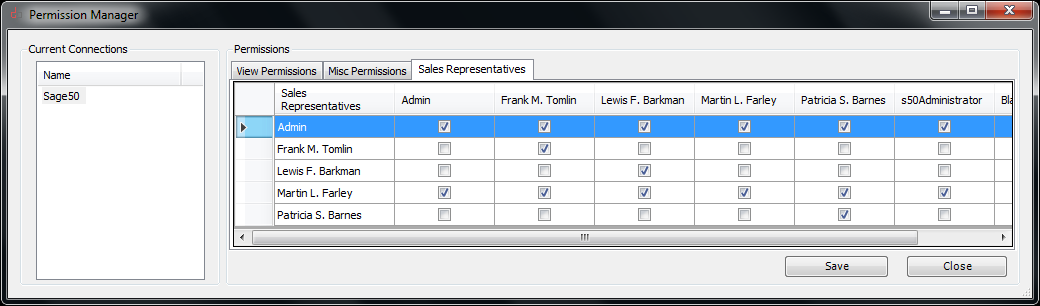

  1. Click Sales Representative Tab
  2. Check Box for each sales representative for view permissions
  3. You can double click the header or row to check or uncheck all
  4. Click Save
  5. Click Close
  6. Click Yes
  7. Click OK
  • Most views have the "Sales Representative" from Sage 50 US Accounting listed. Each Sales Representative will only be able to see view where they are the Sales Representative.
  • You can also enable Sales Representative to see other Sales Representative information. Example, sales manager may need to view each Sales Representative's views on their team.
  • DataPlus Tab should be available for each DataPlus Client after "DataPlus Client Install".
DataPlus Act Manual Import - Remove Selected Entities
Auto Import Configuration
    Import Selection
    Remove Selected Entities
  1. Check each primary entity you want to be removed from Act
    1. (100) Company Customer
    2. (200) Company Vendor
    3. (300) Customer
    4. (314) Customer Ship To
    5. (400) Vendor
    6. (600) Salesperson
    7. Each Act Opportunity
Note: Typically this is a one time task and used when manually importing from within Act.
Related FAQs

Software Solutions
DataPlus Integration
DataPlus ERP Integration
DataPlus Custom Integration
DataPlus Addons
DataPlus Plugins & Tools
Hosting Solutions
Mobile Solutions
QuoteWerks Quoting Solutions
QuoteWerks Integration
QuoteWerks Subscription & Licensing
Act! CRM Solutions
CRM
CRM & Marketing Automation
Marketing Automation
Pricing
Mobile Solutions
Helpful Links
Act! Hosting Solutions
Act! Mobile Messenger
Act! ERP Integration
Act! Custom Integration
Act! Addons
Act! Plugins & Tools
Act! Training
Act! Resources
Act! Support
Act! Community
Act! Downloads & Updates
Learning - Support
Software Support
Support (GoToAssist)
Support Plans
Training
Act! Training
KB Hogan Data / DataPlus
KB Act! Questions
KB QuoteWerks Questions
Contact Us
About Us
How Can We Help You
Privacy Policy
Return Policy
Resources
DataPlus Subscription
DataPlus Maintenance
QuoteWerks Maintenance
Partner Lead Submission
Secure CC Authorization
Secure CC Pre-Authorization

Translate this page:
©1995 - 2019 HOGAN DATA | All rights reserved
